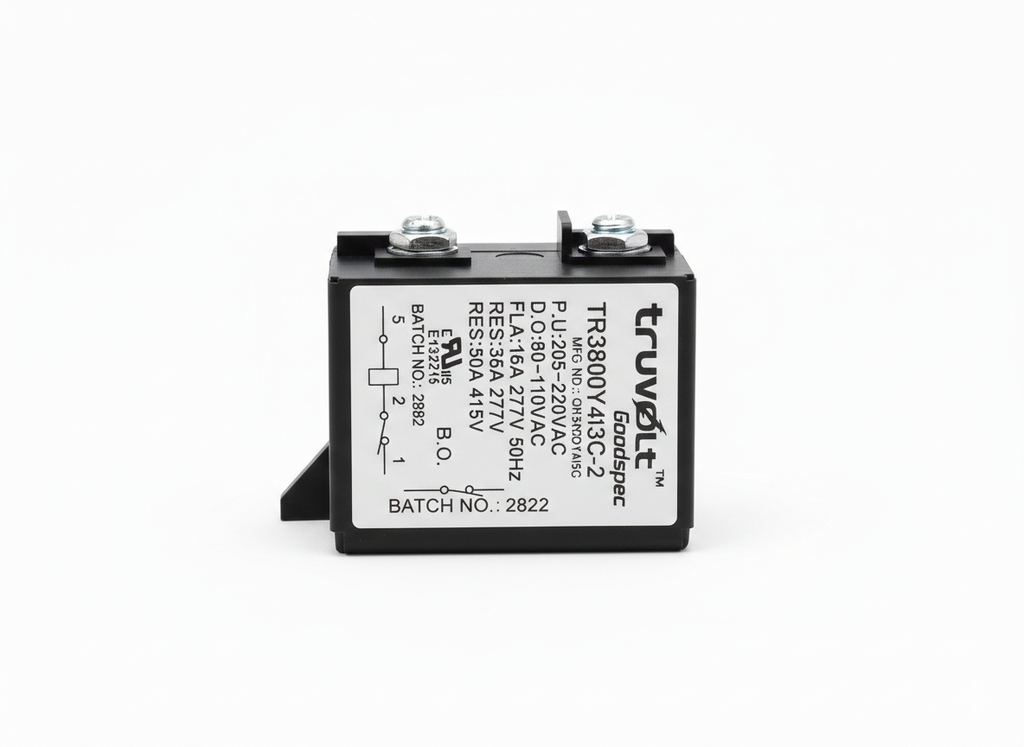

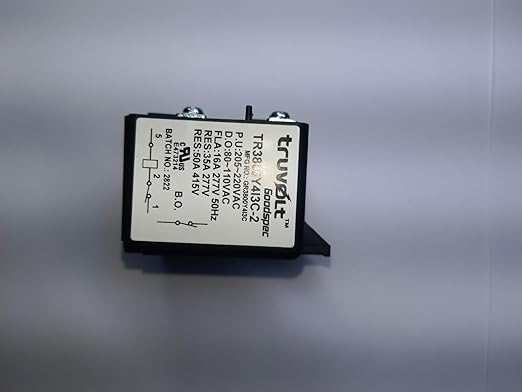

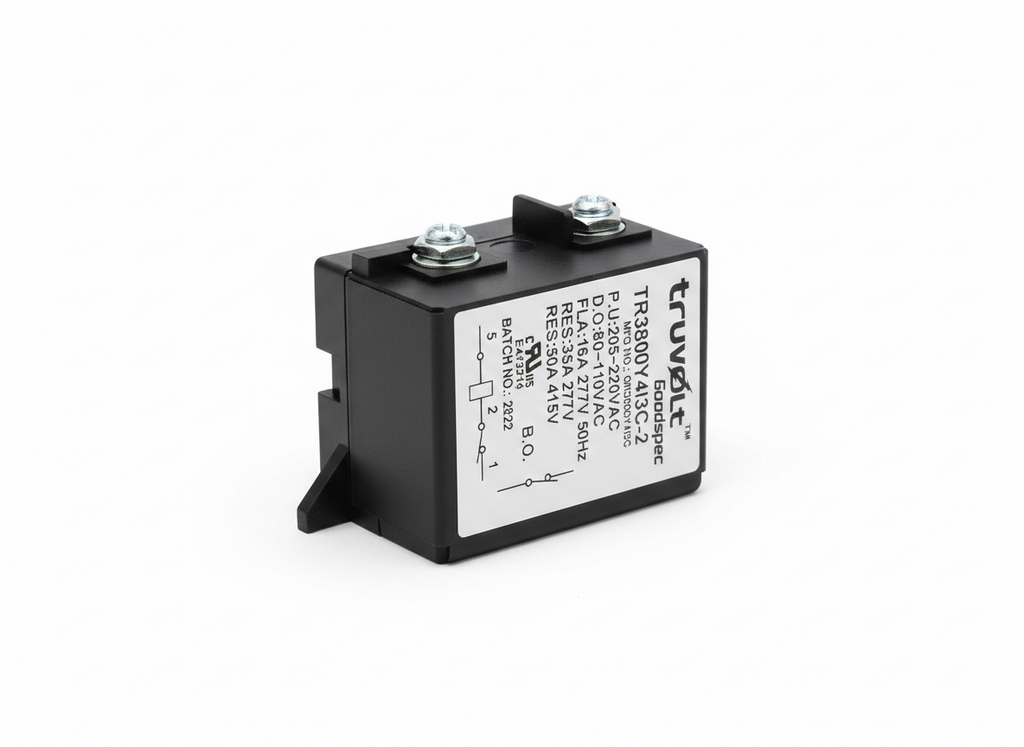

Truvolt Relay TR3800Y413C-2
Rs. 749.00
Taxes included.
This is a truvolt™ Goodspec Potential Relay, specifically model TR3800Y413C-2. These devices are primarily used in HVAC and refrigeration systems to assist in starting single-phase motors (like compressors) by disconnecting the start capacitor once the motor reaches a certain speed.
Below are the technical specifications and details extracted from the product label:
Product Identification
- Brand: truvolt™ (Goodspec series)
- Model Number: TR3800Y413C-2
- Batch Number: 2822
- Certifications: UL Recognized component (indicated by the backward "UR" symbol and file E132215).
Electrical Ratings
The label provides specific operating thresholds and load capacities:
| Specification | Value | Description |
| P.U. (Pick-Up) | 205–220 VAC | The voltage at which the relay contacts will close/activate. |
| D.O. (Drop-Out) | 80–110 VAC | The voltage at which the relay contacts will open/deactivate. |
| FLA | 16A @ 277V (50Hz) | Full Load Amperage (running current capacity). |
| RES | 36A @ 277V | Resistive load rating. |
| RES | 50A @ 415V | Maximum resistive load rating at higher voltage. |
